Francis Kéré: Crafting Thermal Comfort with Earthen Materiality in Gando

Diébédo Francis Kéré’s architectural practice in Gando, Burkina Faso, exemplifies a profound commitment to embodied carbon reduction through the reinterpretation of local building techniques and materials. His projects, particularly the Gando Primary School, showcase how thoughtful design with vernacular resources can achieve thermal comfort without complex mechanical systems. This approach prioritizes the material lifecycle and the climate cost of construction choices, offering a model for sustainable development in challenging environments.

In Short

• Francis Kéré leverages local earth and traditional building methods in Gando.
• Passive cooling strategies, like raised roofs and clay ceilings, achieve thermal comfort.
• His work minimizes embodied carbon by utilizing readily available, unprocessed materials.
• Community participation is integral to the construction and knowledge transfer process.

Picture Notes

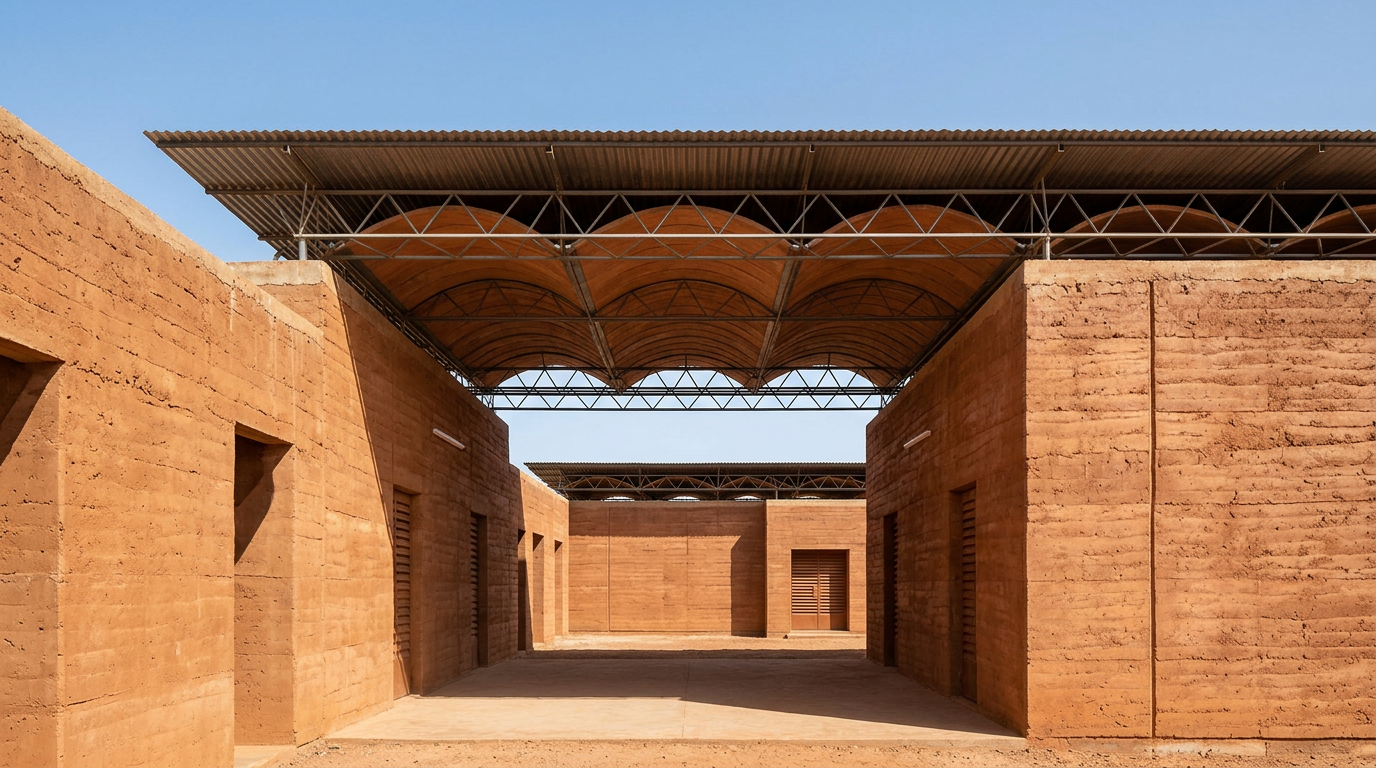

1. Perforated Clay Ceiling — Hand-formed clay pots are integrated into the concrete slab, reducing material use and providing thermal mass. This detail exemplifies a fusion of traditional craft with contemporary structural techniques. 2. Elevated Tin Roof — A corrugated tin roof, elevated above a clay ceiling vault, creates a critical air gap. This thermal chimney effect draws heat away, cooling the spaces below. 3. Rammed Earth Wall — Thick, load-bearing walls of compressed earth provide substantial thermal inertia. Their warm, earthy tones are a direct expression of the local geology and construction method. 4. Shadow Line Detail — The precise junction where a timber support meets an earthen wall, casting a sharp shadow. This highlights the architectural clarity achieved through simple, honest material connections. 5. Clay Ceiling Vault — The elegant curve of a finished clay ceiling vault, meticulously constructed from locally sourced mud bricks. It provides insulation and a diffused quality of light within the classroom.

Local Earth, Global Impact

Francis Kéré’s architectural methodology begins with the immediate environment of Gando, Burkina Faso, where earth is the predominant building material. His work challenges conventional construction practices that often import materials with high embodied carbon footprints. For instance, the Gando Primary School, completed in 2001, primarily utilizes locally sourced clay and laterite soil for its walls and ceilings. This material choice drastically reduces the energy expended in transportation and manufacturing, directly addressing the theme of embodied carbon in construction choices. The use of unfired earth bricks eliminates the energy-intensive firing process common in conventional brick production, further lowering the project's climate impact.

Kéré’s approach is not merely about material selection; it involves a deep engagement with community knowledge and traditional building techniques. Local workers are trained in the specific methods required, ensuring skills transfer and economic empowerment within the community. This collaborative construction process reinforces the social sustainability of his projects, making them truly vernacular in both form and construction.

Passive Comfort, Active Design

Achieving thermal comfort in the hot, arid climate of Gando is central to Kéré’s design philosophy. The Gando Primary School employs several passive strategies to mitigate heat gain without reliance on air conditioning. A prominent feature is the building's raised tin roof, which stands above a suspended clay ceiling vault. This dual-layer roof system creates a natural convection current, or 'thermal chimney,' that effectively draws hot air upwards and out, allowing cooler air to circulate below. This allows the classroom to remain cool even in high temperatures, a crucial design aspect for learning environments in challenging climates.

The clay ceiling vaults themselves contribute significantly to thermal regulation. Their inherent thermal mass absorbs heat during the day and slowly releases it at night, moderating internal temperatures. Furthermore, the thick earthen walls provide excellent insulation, preventing external heat from penetrating the interior spaces. This integrated approach to passive design demonstrates a sophisticated understanding of thermodynamics applied through simple, contextually appropriate solutions. These design choices directly address the material lifecycle, extending the usability and comfort of spaces without increasing operational energy demands.

The Lifecycle of Materials and Embodied Carbon

The climate cost of construction choices is a critical consideration in contemporary architecture. Francis Kéré's projects offer a compelling case study for minimizing this cost by prioritizing materials with low embodied carbon. Embodied carbon refers to the greenhouse gas emissions associated with the extraction, manufacturing, transportation, installation, maintenance, and disposal of building materials. By focusing on local earth, Kéré dramatically lowers these emissions.

The materials used—clay, laterite, and some recycled steel—have minimal processing requirements. For example, the earth for the bricks is often excavated directly from the site or nearby, reducing transportation distances to negligible levels. The reliance on human labor and simple tools for construction also lessens the need for fossil fuel-dependent machinery. This stands in contrast to common global construction practices which often involve energy-intensive materials like concrete and steel, transported across vast distances. Kéré's work demonstrates that a deep understanding of material lifecycle and a commitment to local resources can lead to significant reductions in architecture's environmental footprint.

ARCHITECTT Note

Kéré's work in Gando provides a clear example of how profound architectural expression can emerge from material constraint and climatic response, reminding us to consider how local resources might define a project's palette and form in our own studio contexts.

Closing

Francis Kéré's practice in Gando transcends mere construction; it represents a comprehensive architectural vision that intertwines social responsibility, environmental stewardship, and design ingenuity. His projects serve as a powerful testament to the potential of vernacular traditions when re-engaged with contemporary architectural thought. By prioritizing low-embodied carbon materials and passive thermal strategies, Kéré offers a replicable model for building in resource-constrained environments globally, demonstrating that the most impactful solutions often emerge from the most local of resources. His work underscores the imperative for architects to critically assess the lifecycle of materials and the broader climate implications of every design decision.

FAQ

What is Francis Kéré known for?

Francis Kéré is known for his socially conscious and environmentally sustainable architecture, primarily in his home country of Burkina Faso. He gained international recognition for projects like the Gando Primary School, which utilize local materials and community-based construction methods.

Where is Gando located?

Gando is a village located in Burkina Faso, a landlocked country in West Africa. It is the birthplace of architect Francis Kéré.

How does Kéré’s architecture address embodied carbon?

Kéré addresses embodied carbon by primarily using local, unprocessed materials like clay and laterite soil. This minimizes emissions from manufacturing and transportation, which are major contributors to embodied carbon in conventional construction.

What passive cooling techniques are used in Kéré’s buildings?

Kéré’s buildings incorporate passive cooling techniques such as raised roofs to create thermal chimneys, thick earthen walls for thermal mass and insulation, and strategically placed openings for natural ventilation. These methods reduce reliance on mechanical cooling systems.

What materials are commonly used in Kéré’s projects?

The primary materials used in Francis Kéré’s projects include locally sourced clay, laterite soil, and unfired earth bricks. He also incorporates timber and recycled elements when appropriate for structural or protective purposes.
