Curtain Wall Logic: The Lightweight Envelope of Transparency

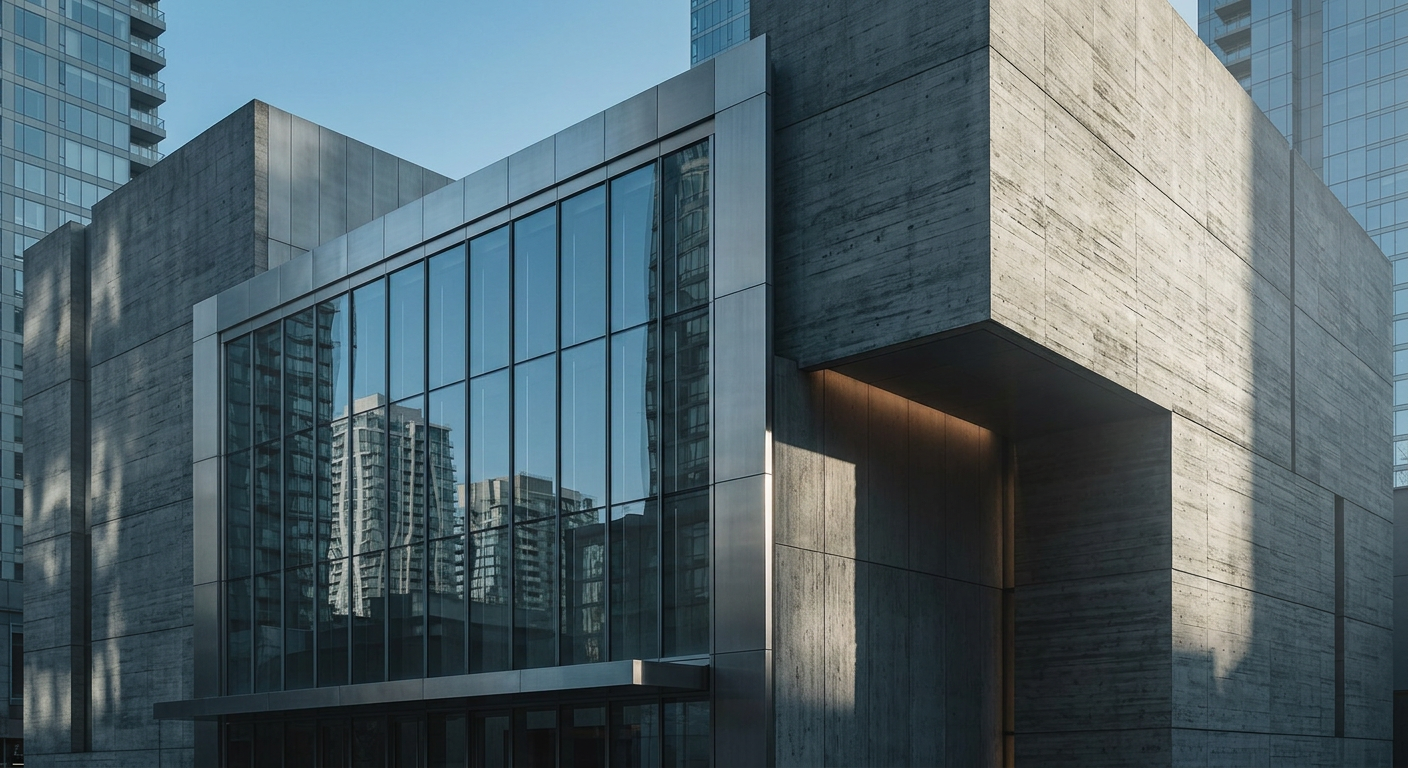

The curtain wall, a non-load-bearing exterior enclosure, reconfigures the building facade from a structural element into a lightweight, permeable skin. It prioritizes the influx of natural light, expansive views, and material transparency, diverging from the solid, load-bearing walls characteristic of earlier architectural periods. This system enables greater design flexibility and significantly influences a building's energy performance and occupant experience.

In Short

• Curtain walls are non-load-bearing, transferring only their dead weight and wind loads to the main structure.
• They facilitate expansive glazing, maximizing natural light and visual access to the exterior.
• Material choices extend beyond glass, including metal panels, stone veneers, and composite materials.
• Performance is critical, addressing thermal transfer, acoustic isolation, and weather protection.

Evolution of the Lightweight Envelope

The development of the curtain wall is intrinsically linked to advancements in structural engineering, particularly the rise of the steel frame. Prior to this, exterior walls were typically load-bearing, their thickness determined by the structural requirements of the building. The invention of the skyscraper, pioneered in Chicago in the late 19th century, necessitated a new approach to the facade. William Le Baron Jenney's Home Insurance Building, completed in 1885, is often cited as an early example, although its framing was hybrid. The full liberation of the facade came with fully developed steel framing, allowing the exterior to become a mere enclosure, hung from the internal structure.

Early curtain walls often featured large expanses of single-pane glass set within metal frames, reflecting an industrial aesthetic. As the 20th century progressed, the material palette expanded, and an understanding of thermal performance became more critical. The International Style embraced the curtain wall as a defining feature, emphasizing planar surfaces and minimal ornamentation. Post-war high-rises solidified its role as a predominant building enclosure system.

Components and Typologies

A typical curtain wall system comprises several key components: the framing members (mullions and transoms), infill panels (most commonly glass), anchoring systems to the building structure, and sealants. Mullions are the vertical elements, and transoms are the horizontal elements, collectively forming a grid that supports the infill. Anchors connect this grid to the main floor slabs or columns, allowing for movement due to thermal expansion and building deflection.

Curtain walls are broadly categorized into two main typologies: stick systems and unitized systems. Stick systems are assembled on-site, with individual framing members and infill panels installed piece by piece. This method often suits smaller projects or complex geometries, offering flexibility in construction. Unitized systems, conversely, are fabricated and glazed off-site into large, pre-assembled modules. These units are then transported to the site and hoisted into place, leading to faster installation times and higher quality control. This approach is prevalent in large-scale commercial towers.

Further differentiation exists within these categories, including panel-glazed systems, where glass units are factory-glazed into frames before installation, and structural glazing, where glass is adhered to the frame with structural silicone, creating a flush exterior appearance with minimized visible metalwork.

Performance and Environmental Impact

The performance of a curtain wall is multifaceted, extending beyond aesthetic considerations to encompass thermal, acoustic, and structural integrity. Thermal performance is crucial for energy efficiency. Modern curtain walls incorporate technologies such as insulated glazing units (IGUs) with multiple panes and low-emissivity (low-e) coatings to reduce heat transfer. Thermal breaks within the framing further mitigate conductivity.

Acoustic performance is equally important, particularly in urban environments, to control noise transmission. The mass and layering of materials, along with proper sealing, contribute to acoustic isolation. Structural performance ensures the system can withstand wind loads, seismic events, and its own dead weight, transferring these forces safely to the main building frame. Water and air tightness are achieved through sophisticated gasketing and drainage systems, preventing moisture penetration and unwanted air infiltration.

The environmental impact of curtain walls is a significant consideration. While expansive glazing can increase solar heat gain, leading to higher cooling loads, advancements in glass technology and shading devices mitigate this. The embodied energy of materials, particularly aluminum for frames and the energy-intensive production of glass, also plays a role. Strategies like optimized daylighting can reduce reliance on artificial lighting, contributing to energy savings over the building's lifecycle.

ARCHITECTT Note

The curtain wall represents a fundamental shift in architectural expression, moving from monumental mass to diaphanous enclosure. It facilitated the modern skyscraper and continues to evolve with material science and environmental imperatives. The tension between transparency and thermal performance remains a central design challenge, driving innovation in glazing technology and facade integration.

Closing

The curtain wall has redefined the threshold between interior and exterior, transforming building facades into dynamic interfaces. This system, borne from structural innovation, offers architects unparalleled freedom in composing exterior skins that respond to site, program, and environmental demands. Its continued evolution addresses the complex interplay of aesthetics, performance, and sustainability, ensuring its relevance in contemporary architectural discourse.

FAQ

What is the primary function of a curtain wall?

The primary function of a curtain wall is to enclose the building, providing weather protection, thermal insulation, and aesthetic appeal, without carrying any vertical structural loads from the building's roof or floors.

How does a curtain wall differ from a traditional window wall?

A curtain wall typically spans multiple floors, often covering the entire facade, and is connected to the building's main structure. A window wall, conversely, is typically installed within a floor slab-to-slab opening and often carries some dead loads of its own, but not from the overall building structure.

What materials are commonly used in curtain wall construction?

The most common materials for curtain wall framing are aluminum, steel, and sometimes timber composites. Infill panels are predominantly glass, often insulated or low-e coated, but can also include metal panels, composite materials, or thin stone veneers.

Can curtain walls be opened for ventilation?

Yes, curtain walls can integrate operable windows, vents, or louvers to allow for natural ventilation. These components are carefully designed and incorporated into the overall system to maintain weather integrity and thermal performance.

What are the main advantages of a unitized curtain wall system?

Unitized curtain wall systems offer advantages such as faster on-site installation, improved quality control due to off-site fabrication in controlled environments, and reduced labor costs on the construction site.
