Cycladic Fortified Farms: Lath, Light, and Defensive Woodwork

The fortified farmhouses of the Cyclades, known as pyrgos, represent a vernacular architecture shaped by both climatic exigencies and historical necessity. These structures, often incorporating lath and plaster techniques, demonstrate a sophisticated understanding of passive design principles and defensive strategies. Their forms are not merely functional but express a deep adaptation to the island landscape and its specific challenges, particularly regarding natural lighting and orientation.

In Short

• Cycladic pyrgos are fortified farmhouses integrating defense and domesticity.
• Lath and plaster, a traditional technique, contributes to their thermal and light properties.
• Strategic orientation and aperture design manage intense Aegean sunlight.
• Timber elements, though scarce, are crucial for structural integrity and interior definition.

Picture Notes

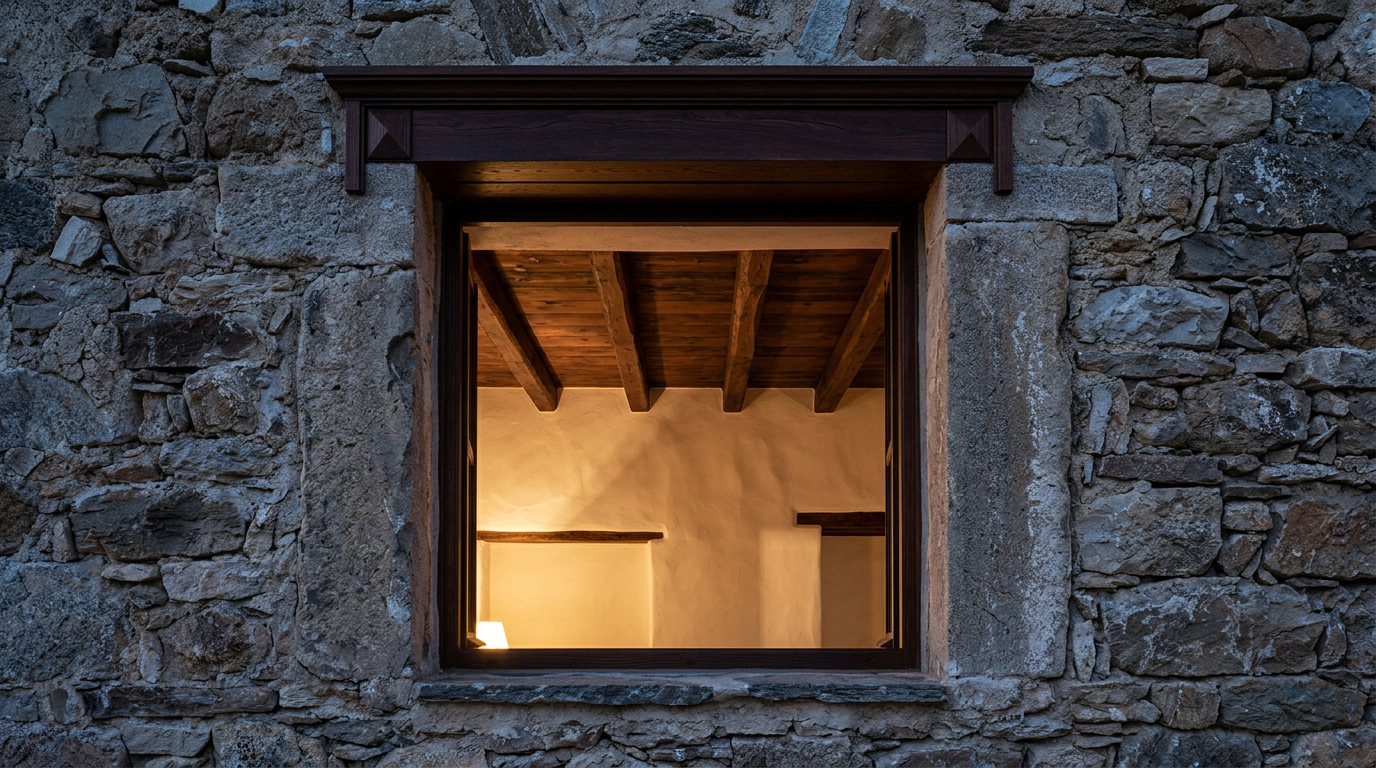

1. Timber Ceiling Beams -- Heavy timber beams span the internal spaces, supporting upper floors and the roof structure. These elements are often left exposed, revealing their grain and robust joinery. 2. Lath and Plaster Finish -- Interior walls exhibit the subtle undulations inherent to lath and plaster construction. The finish diffuses artificial light, creating a soft glow. 3. Narrow Window Aperture -- A deep-set, narrow window opening demonstrates the defensive and light-control aspects of pyrgos design. The thick walls reduce heat gain and limit views in. 4. Shadow Play on Wall -- The strong raking light from a strategically placed aperture casts sharp shadows, highlighting the texture of the plastered wall and marking the passage of time. 5. Timber Lintel Detail -- A substantial timber lintel supports the masonry above a doorway, showcasing the structural role of wood in these predominantly stone and earth buildings.

The Pyrgos Typology: Defense and Dwelling

The pyrgos (plural: pyrgoi) is a distinctive building type found across the Cycladic islands, particularly prominent in Naxos, Sifnos, and Amorgos. These structures served a dual purpose: agricultural production and defense against pirate raids prevalent from the 15th to the 19th centuries. Typically, a pyrgos is a multi-story stone tower, often square or rectangular in plan, with thick, battered walls that taper towards the top, enhancing their defensive posture. The ground floor was traditionally used for storage or livestock, with living quarters located on upper floors, accessed via internal or retractable exterior ladders. The Kastro of Naxos, for example, features houses built into a fortified complex, demonstrating this integration of defense and domestic life from the Venetian period. Pyrgoi on Mykonos and Paros also share these common characteristics, adapted to local topographies. Many surviving examples date from the 17th and 18th centuries.

Lath and Plaster: Form, Function, and Finishes

The construction of pyrgos interiors frequently employed lath and plaster. While stone formed the primary structural shell, internal partitions and ceiling finishes often utilized a framework of timber laths, typically made from local juniper or cypress, then covered with multiple layers of lime-based plaster. This technique created smooth, bright surfaces that reflected light, crucial in spaces with limited fenestration. Beyond aesthetics, lath and plaster contributed to the building's thermal performance, providing an insulating layer that helped regulate interior temperatures against the intense Aegean sun. The flexibility of this system also allowed for a degree of seismic resilience compared to rigid masonry alone. The application of white lime wash not only brightened interiors but also acted as a natural disinfectant.

Choreographing Daylight: Orientation and Aperture Design

The natural lighting strategy in a pyrgos is intrinsically linked to its defensive and climatic considerations. Openings are minimal and strategically placed, often small and deeply recessed, acting as both embrasures and controlled light sources. The orientation of the pyrgos itself was critical; architects considered prevailing winds for ventilation and solar paths to optimize passive heating in winter and cooling in summer. Windows were typically positioned to admit indirect light or to frame specific, distant views, limiting direct solar gain. The thick masonry walls and deep reveals act as sunshades, reducing glare and preventing overheating. This meticulous control of apertures ensures a consistent, diffused light quality within the interior spaces, preventing excessive brightness while maintaining visual connection to the external environment. The interplay of light and shadow on the textured lath and plaster walls created dynamic visual interest throughout the day.

Timber Elements: Structure and Detail

Despite the scarcity of large timber resources in the Cyclades, wood played an indispensable role in pyrgos construction. Beams for floor and roof structures were typically large, rough-hewn sections of cypress or pine, often imported. These timbers were integrated into the thick stone walls, providing stability and carrying vertical loads. Smaller timber elements formed the lath frameworks for internal plasterwork, and were used for lintels, door frames, and window shutters. These shutters, often painted in vibrant blue or green, offered additional protection from the sun and intruders, further modulating light entry. In some instances, intricate timber ceilings or built-in furniture were crafted, showcasing the available carpentry skills and adding warmth to the whitewashed interiors. The precision of these timber components, though often simple, ensured structural integrity and durability in a demanding environment.

ARCHITECTT Note

The Cycladic pyrgos illustrates architecture as an evolved response to specific environmental and historical pressures. The deliberate interplay of robust materials, strategic orientation, and limited yet effective fenestration is a testament to indigenous building wisdom. There is an intellectual rigor in these seemingly simple forms that contemporary design can draw from, especially concerning light management and resource efficiency.

Closing

The enduring architectural language of the Cycladic pyrgos offers lessons in resilience and contextual design. These fortified farmhouses are more than historical artifacts; they are living examples of how constraints—whether defensive needs, material scarcity, or climate—can drive inventive and elegant solutions. The integration of lath and plaster with meticulous daylight strategies speaks to a timeless intelligence in building, where every element serves multiple purposes, resulting in structures that are both functional and profoundly beautiful. The balance between protection and illumination defines these structures, presenting a model of architecture deeply rooted in its place.

FAQ

What is a Cycladic pyrgos?

A Cycladic pyrgos is a traditional fortified farmhouse found on the Cycladic islands of Greece. It served as both a residence and a defensive structure against pirate raids.

What materials are commonly used in pyrgos construction?

Pyrgos are primarily built with local stone for their thick walls. Timber is used for structural elements like beams and lath, and lime plaster is applied to interior and exterior surfaces.

How did pyrgos manage natural light?

Natural light in a pyrgos was managed through strategic orientation and small, deeply recessed windows. These features controlled solar gain, reduced glare, and provided diffused interior illumination while maintaining defensive capabilities.

Why was lath and plaster used in pyrgos interiors?

Lath and plaster provided a smooth, bright interior surface that reflected light. It also added an insulating layer, contributing to the thermal regulation of the building, and offered some seismic resilience.

Are pyrgos still inhabited today?

Yes, many pyrgos have been preserved and some are still inhabited or have been restored for modern use, often maintaining their original architectural character and adaptive strategies.

What is the historical significance of pyrgos?

Historically, pyrgos are significant as they represent a unique architectural response to the socio-political and environmental conditions of the Cyclades from the late Byzantine period through the Ottoman rule, particularly the threat of piracy in the Aegean Sea.
