Formwork Logic: The Provisional Architecture of Concrete

Formwork is the provisional, mutable architecture that defines the exact geometry and texture of concrete structures. It acts as a temporary mold, holding fluid concrete until it cures and develops sufficient strength to be self-supporting. The design and construction of formwork are as integral to a concrete building's final aesthetic and structural performance as the concrete mix itself.

In Short

• Formwork is foundational to concrete construction, shaping both structural integrity and surface finish.
• It functions as a temporary architectural intervention, often consuming significant project resources.
• The material and design of formwork directly influence the concrete's texture and final appearance.
• Advancements in digital fabrication and material science are evolving traditional formwork practices.

The Engineering of Absence

Formwork is, by definition, an architecture of absence. Its purpose is to create a void that will then be filled, and ultimately, it is removed, leaving behind the solid form it enabled. This temporary nature belies its critical role. The structural integrity of the final concrete element depends directly on the formwork's ability to resist the hydrostatic pressure of wet concrete, maintain dimensional accuracy, and support construction loads. In the construction of the Sydney Opera House, for instance, the complex geometries of the roof "shells" required innovative formwork solutions that integrated prefabrication and on-site assembly. The concrete elements, poured in situ, relied on precisely engineered temporary structures to achieve their iconic curvature. The removal of formwork reveals the concrete surface, making any imperfections in the mold visible on the finished material.

Material and Finish

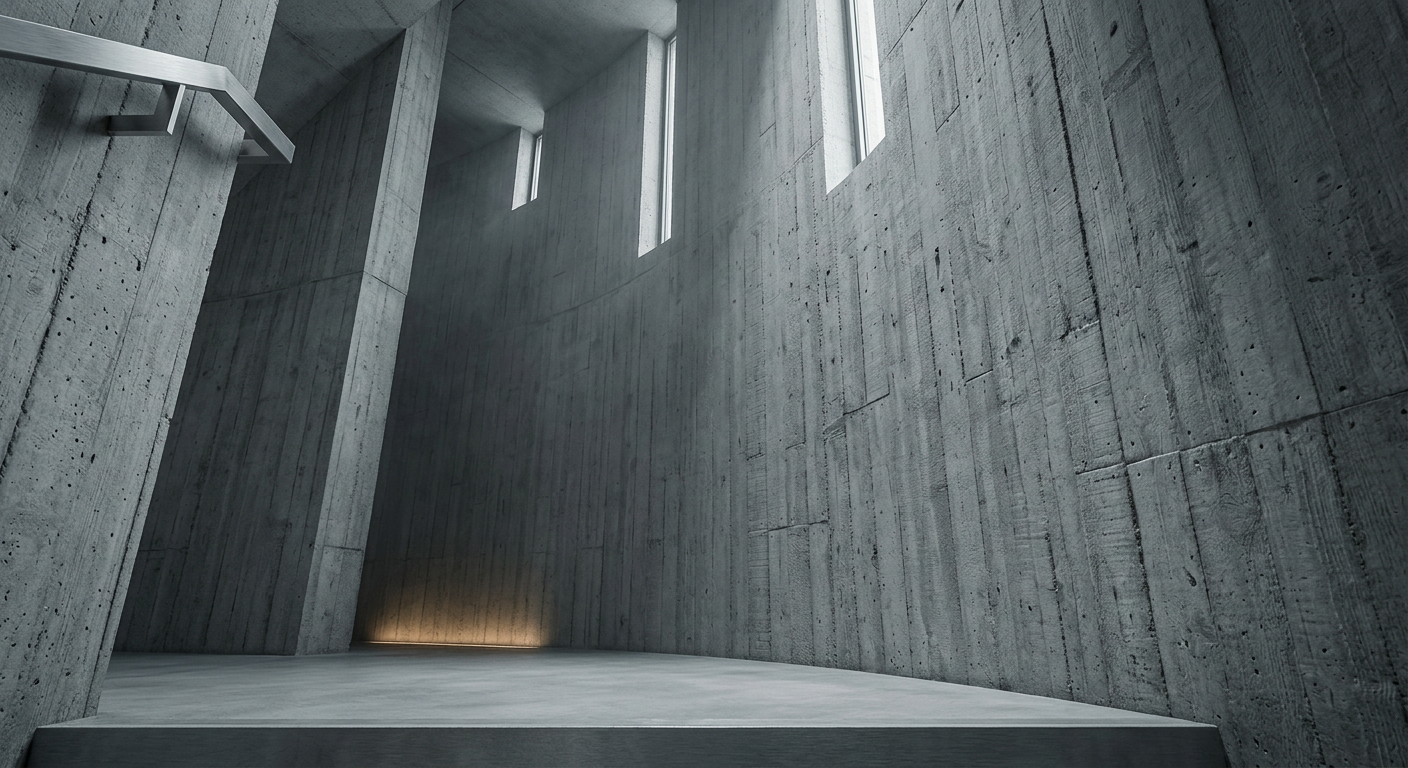

The choice of formwork material dictates the texture and finish of the exposed concrete. Timber boards, for example, impart a distinct wood grain and board joint pattern, often desired for its organic aesthetic in Brutalist architecture. Plywood provides a smoother, more uniform surface. Steel forms yield a highly consistent and often reflective concrete finish, preferred for precision-engineered facades or precast elements. Plastic forms can create intricate patterns or textures not easily achieved with traditional materials. For buildings like the Salk Institute in La Jolla, California, architect Louis Kahn meticulously specified the formwork to achieve a specific concrete texture. He insisted on plywood forms that would be used a limited number of times to ensure a consistent, flawless surface, contributing to the building's enduring material expression.

Economic and Environmental Implications

The cost of formwork can account for a significant portion of a concrete structure's overall cost, sometimes reaching 40-60% of the total concrete work budget. This economic reality drives innovation in reusable systems, standardized components, and more efficient erection and stripping methods. Environmentally, the consumption of timber for single-use formwork raises concerns about deforestation and waste. The industry is responding with initiatives centered on recycling, using sustainable timber sources, and developing durable, reusable forms made from materials like steel, aluminum, or composite plastics. In some advanced projects, 3D-printed formwork is being explored to reduce material waste and enable highly complex geometries without traditional molds.

Innovations in Digital Fabrication

The advent of digital fabrication techniques is transforming formwork design. Parametric modeling allows architects to design complex, non-standard geometries that are then translated into precise cutting files for CNC machines. This enables the fabrication of intricate formwork components with greater accuracy and less waste than manual methods. Robotic fabrication is also emerging, particularly for bespoke or free-form concrete structures. These technologies facilitate the creation of custom molds for projects that push the boundaries of concrete architecture, offering new expressive possibilities beyond rectilinear forms.

ARCHITECTT Note

Formwork, though temporary, is a profound expression of architectural intent. Its existence is fleeting, yet its influence is permanent. The precision, material choice, and labor invested in formwork directly manifest in the enduring qualities of a concrete structure. It is an unseen layer of design that warrants closer inspection for its instrumental role in shaping the built environment.

Closing

The provisional nature of formwork contrasts sharply with the permanence of concrete. This dialectic reveals a fundamental aspect of construction: the intricate dance between temporary means and lasting ends. Understanding formwork is to understand the unseen labor and precision that define concrete architecture, from its grandest gestures to its most subtle textures. It is an acknowledgment that what disappears is often as critical as what remains.

FAQ

What is formwork?

Formwork is a temporary structure used in concrete construction to contain and mold wet concrete into a desired shape until it hardens and gains sufficient strength to support itself. It effectively acts as a temporary framework or mold.

What materials are commonly used for formwork?

Common materials include timber (plywood, lumber), steel, aluminum, and plastic. The choice depends on factors like desired surface finish, reusability requirements, and structural demands.

How does formwork affect the finished concrete surface?

The material and surface finish of the formwork directly imprint onto the concrete. For example, rough timber formwork leaves a visible wood grain, while smooth steel forms yield a very smooth concrete surface.

What are some innovations in formwork technology?

Recent innovations include reusable modular systems, climbing formwork for tall structures, slipform techniques, and digitally fabricated formwork (e.g., CNC-milled or 3D-printed molds) for complex geometries.

Why is formwork so critical in concrete construction?

Formwork is critical because it ensures the concrete cures to the correct shape, dimensions, and surface finish. It also provides temporary support for the wet concrete and construction loads until the concrete achieves its design strength, thus preventing structural failure during the curing process.
