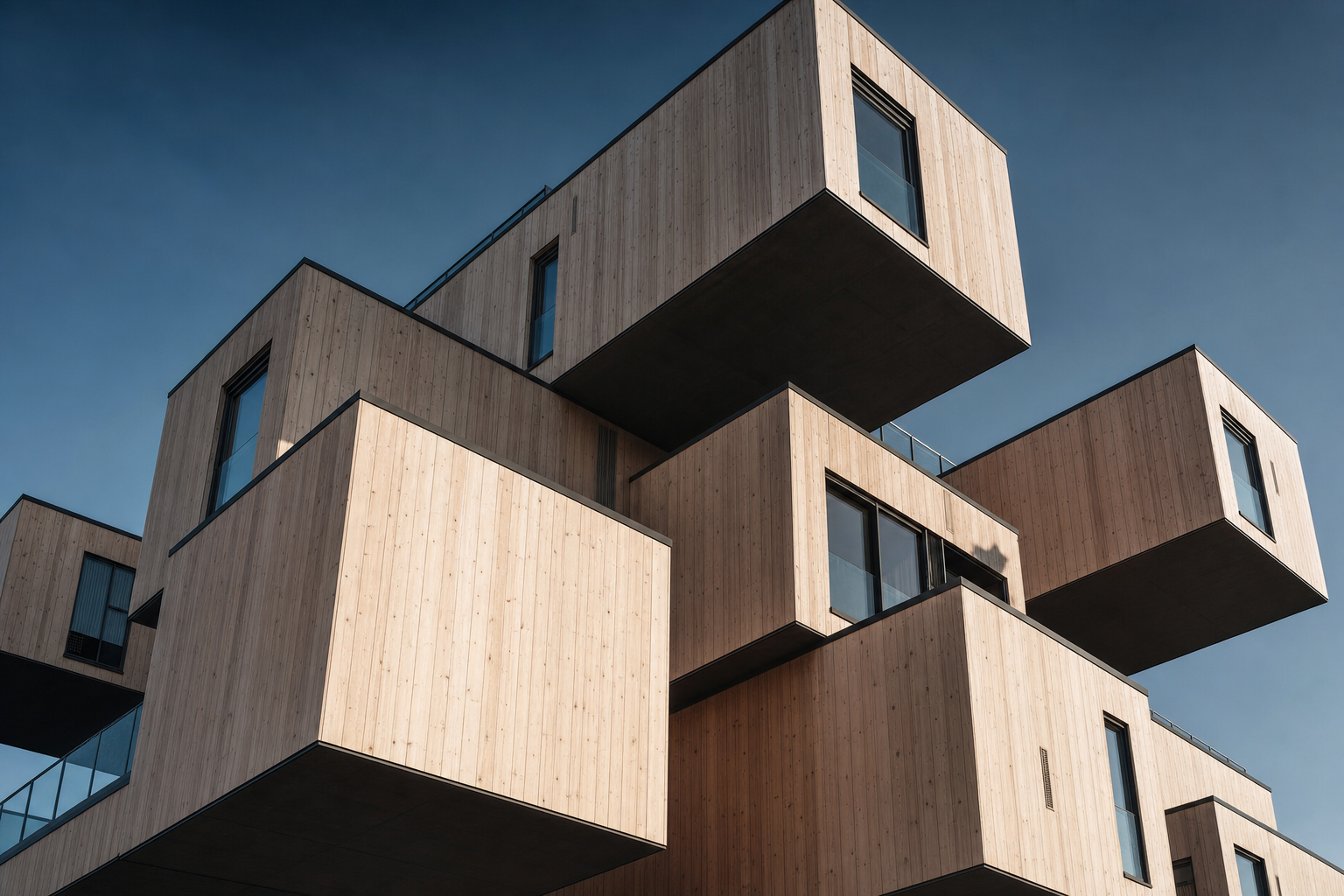

Cellular Logic: The Unit as a Structural Nucleus

Cellular logic in architecture refers to a design methodology where space is organized through the repetition and variation of discrete, self-contained units. This approach moves beyond simple modularity by treating the individual cell as a functional and structural nucleus that dictates the overall form of the building. By centering the unit as the primary driver of design, architects can create complex, scalable structures that address the demands of density and individual autonomy.

The Unit as a Structural Nucleus

Traditional architecture often views the building as a monolithic envelope subdivided into rooms. Cellular logic reverses this hierarchy. The unit is designed first, encompassing its own structural support, services, and envelope. When these units are aggregated, they form the collective structure of the building. This bottom-up approach allows for a "plug-in" or stacked assembly process, often reducing the need for traditional primary skeletons.

In contemporary practice, this is seen in mass-timber developments and modular housing projects where the walls of the cell provide the necessary load-bearing capacity. Each cell functions as a stiff box; when bolted or bonded together, the accumulation creates a rigid, resilient mass. This logic inherently simplifies the construction process by moving high-tolerance work into controlled environments, where each cellular nucleus can be optimized for thermal and acoustic performance before arriving on-site.

From Metabolism to Computational Cellularity

The intellectual lineage of cellular logic is deeply rooted in the Japanese Metabolism movement of the 1960s. Architects like Kisho Kurokawa and Kiyonori Kikutake envisioned cities as living organisms, with "cells" (capsules) that could be attached to a central spine and replaced as they aged. The Nakagin Capsule Tower remains the most cited, if flawed, example of this logic. It attempted to decouple the lifespan of the individual dwelling from the lifespan of the mainframe.

Today, computational design has evolved this concept. We no longer rely on identical, rigid boxes. Algorithmic tools allow architects to generate cellular "populations" where each unit varies slightly based on its position in the stack, solar orientation, or internal program. This "variable cellularity" maintains the efficiency of a repeating system while providing the formal richness of a bespoke design. The logic remains cellular because the fundamental building block—the unit—retains its integrity even as its dimensions shift.

Porosity and the Social Margin

A significant advantage of cellular logic is the inherent porosity it grants to large-scale buildings. Because each cell is a distinct volume, the junctions between them can be manipulated to create voids, terraces, and light wells. Instead of a solid block of program, a cellular building functions more like a cluster.

This "margin" between cells is where the social and environmental performance of the building is realized. In high-density urban environments, these gaps provide essential cross-ventilation and daylighting that traditional double-loaded corridor buildings lack. Projects like Moshe Safdie’s Habitat 67 demonstrated early on how offsetting cells could provide every inhabitant with a private garden and a view, breaking the monotony of the "housing machine." Modern iterations of this logic continue to use cellular offsets to define communal spaces, transforming the gaps between units into vertical neighborhoods.

Challenges of Scalability and Systemic Rigidity

Despite its efficiency, cellular logic faces challenges regarding systemic rigidity. Once a cellular system is established—whether it be a specific shipping container dimension or a proprietary timber module—deviating from that logic becomes cost-prohibitive. The infrastructure of the building (elevators, stairs, plumbing stacks) must be meticulously aligned with the cellular grid, which can limit the flexibility of the ground floor or public interface.

Furthermore, the "plug-in" dream of the Metabolists has rarely materialized in a literal sense; replacing individual cells in a high-rise stack remains a logistical nightmare. Therefore, contemporary cellular logic focuses less on the physical replacement of units and more on the logic of initial assembly and the psychological benefits of unit-based living. The cell represents a clear boundary of ownership and identity within the collective whole.

In Short

• Decentralized Structure: The individual cell acts as the primary load-bearing and functional unit.
• Scalable Growth: Buildings are conceived as populations of units rather than subdivided monoliths.
• Environmental Porosity: Strategic spacing between cells facilitates natural light and ventilation.
• Industrial Precision: Facilitates off-site fabrication and high-performance envelope control.

ARCHITECTT Note

Cellular logic offers a necessary antidote to the anonymous glass box. By returning to the unit as the fundamental scale of architecture, we acknowledge the human need for defined territory while addressing the technical requirements of the modern city. The success of this logic lies not in the repetition of the box, but in the intelligent design of the space between the boxes—the interstitial zones that turn a stack of units into a living architecture.

FAQ

What are the primary materials used in cellular architecture?

While the Nakagin Capsule Tower used steel, modern cellular designs frequently utilize Cross-Laminated Timber (CLT), precast concrete, or light-gauge steel frames, depending on the height and fire-safety requirements of the project.

How does cellular logic handle building services like plumbing and electricity?

Services are typically localized within a "wet core" inside each cell. These cores align vertically to connect to primary risers, or in more advanced systems, use flexible umbilical connections to allow for slight offsets in unit placement.

Is cellular logic only applicable to residential buildings?

No. While most common in housing, cellular logic is increasingly applied to laboratories, student housing, and hotels—any typology where repetitive, autonomous spaces are required to function within a larger institutional framework.宣宣
